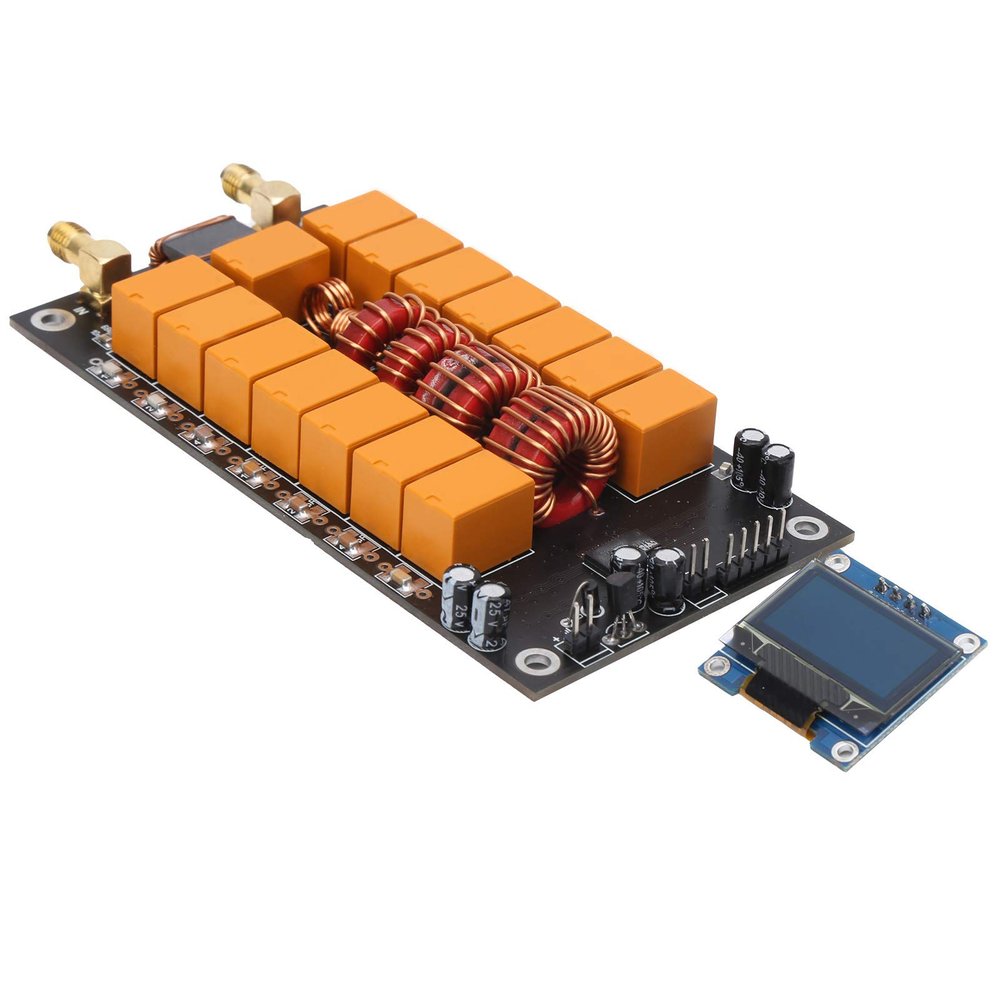

YOUTHINK ATU-100 Mini Automatic Antenna Tuner Kit - DIY Antenna Tuner Board with OLED Firmware Program

Description

• CONSTRUCTION: Single-piece molded design ensures smooth finish and eliminates burrs, making installation quick and straightforward for DIY assembly projects.
• AUTOMATIC TUNING: ATU-100 Mini features automatic antenna tuning with built-in OLED display for real-time monitoring and adjustment, helping optimize signal reception across ham radio frequencies.
• DURABILITY: Robust 1.6mm thick double-sided PCB construction ensures stable performance and long service life in field or base station use.
• THERMAL MANAGEMENT: Enhanced heat dissipation area maintains optimal performance during extended operation periods, improving long-term reliability.
• INDUCTANCE RANGE: Supports wide inductance range from 0.05uH to 8.53uH, offering versatile antenna matching capabilities for different antenna types.

Features:
1.Large heat dissipation area of the module can better maintain long-term .
2.One-piece without burrs, smooth and easy to install.
3.PCB adopts 1.6mm thick double-sided board, sturdy, and long service life.
4.The whole process of tin spraying ensures good passing performance of large and small current.
5.The maximum installation inductance is 8.53uh, the minimum installation inductance is 0.05uh.

Specification:
Item Type: Antenna Tuner Board
Material: PCB
Model: ATU-100
Maximum current draw: 400ma
Number of inductors installed: 7
Number of capacitors installed: 7
Power measurement step at 10 : 0.1
Measurement step at power 10: 1
Power measurement accuracy: 10%
Maximum installed inductance: 8.53uh
Minimum installed inductance: 0.05uh
Maximum installed capacitance: 1869pf
Minimum installed capacitance: 10pf

Package List:
1x Motherboard
1 x Connecting Line
1x Module
