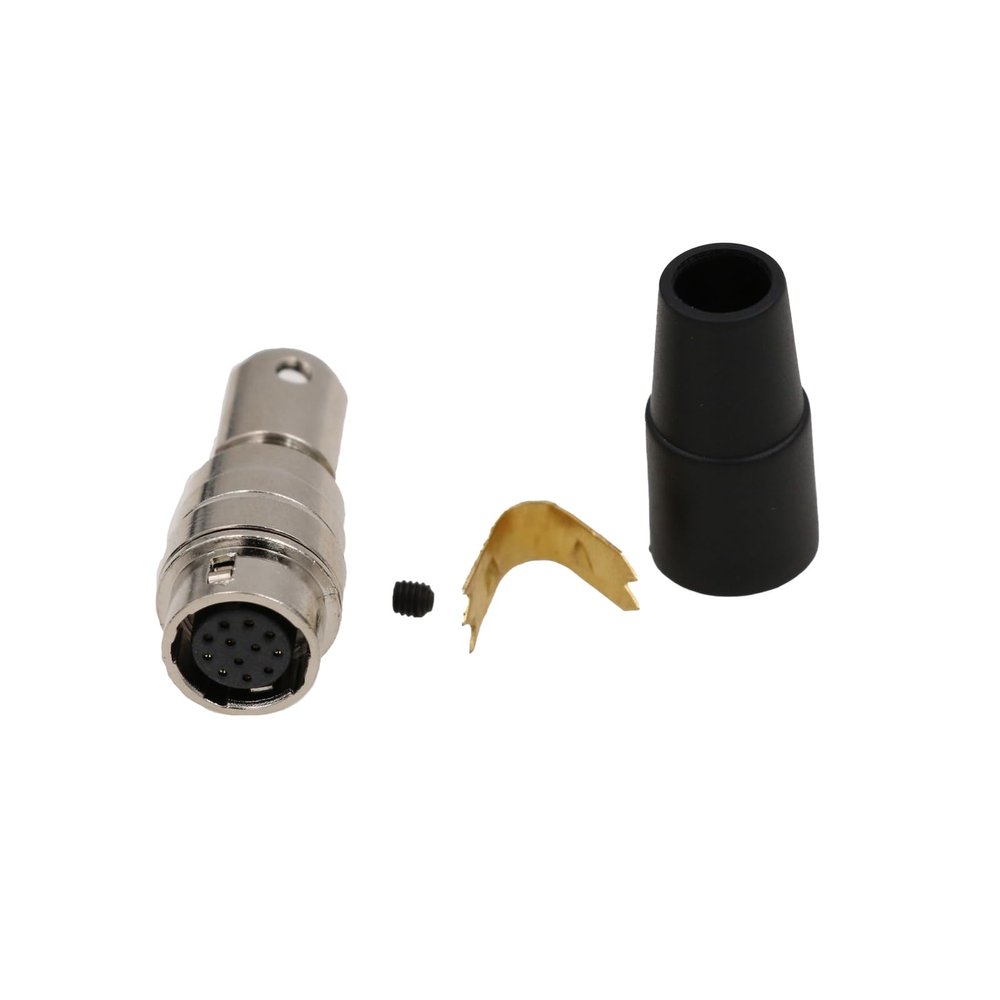

ZBLZGP Hirose 12 Pin Connector Plug, HR10A 12P, Male & Female, High Density Pin Configuration, for Complex Industrial Equipment

Description

• Reliable Push Pull Locking MechanismThe Hirose HR10A series features a dependable push pull locking system. It allows for quick and secure connections, just a simple push to lock and a gentle pull to unlock. This not only saves installation time but also ensures a stable connection during operation, making it perfect for various applications where frequent connection and disconnection are required.
• Multiple Pin Count OptionsWith pin counts ranging from 4 to 20, these connectors offer great versatility. Whether you need a 4 pin connector for basic sensor connections or a 20 pin one for complex data and power transmission in industrial machinery, the HR10A series has the right configuration to meet your specific needs.
• Exceptional DurabilityConstructed with a robust zinc - alloy shell, the HR10A connectors are highly resistant to wear and corrosion. The internal copper alloy contacts, often gold plated, can endure up to 1000 mating cycles. This makes them suitable for use in harsh industrial environments, ensuring long term reliable performance.
• Broad Application ScopeThese connectors are widely used across multiple industries. In the industrial camera field, they guarantee stable data transfer and power supply for high quality image capture. They also play a crucial role in automation equipment, sensors, and instrumentation, enabling seamless signal and power transmission.
• Optimal Electrical PerformanceEach pin of the HR10A series can handle a rated current of 2A, with a rated voltage ranging from 100V AC to 140V DC. The low contact resistance of only 10m minimizes signal transmission loss, while the high insulation resistance of over 1000M ensures safe operation and reliable electrical isolation.

The Hirose HR10A series circular push - pull locking connectors are your go - to solution for a wide range of industrial applications.
Innovative Push - Pull Design
The HR10A series features a unique push - pull locking mechanism. This design allows for quick and effortless connection and disconnection. Just a simple push to lock and a pull to unlock, eliminating the need for complex tools or time - consuming procedures. This not only saves installation and maintenance time but also reduces the risk of human - error during operation.
Multiple Specifications to Choose From
Available in a variety of core numbers ranging from 4 to 20, the HR10A series can meet diverse connection requirements. Whether you need to transmit a small amount of signals for simple sensors or manage a large number of wires for complex industrial equipment, there is an appropriate model for you. For example, the 4 - core model is perfect for basic sensor data transmission, while the 20 - core model can handle the high - demand data and power supply needs of industrial cameras.
Exceptional Durability
Constructed with a high - quality zinc alloy shell, the HR10A series has excellent wear and corrosion resistance. The internal contact components are made of high - performance copper alloy, ensuring stable and reliable electrical connections. Rigorously tested, these connectors can endure up to 1000 mating cycles. Even in harsh industrial environments with frequent use, they maintain outstanding performance, minimizing equipment failure risks and extending the service life of your devices.
Versatile Applications
Thanks to their outstanding performance, HR10A series connectors are widely used in industrial cameras, automation equipment, sensors, instrumentation, and many other industrial fields. In industrial camera systems, they ensure stable image data transmission and reliable power supply, guaranteeing high - quality image capture. In automated equipment, they enable precise signal transmission and power delivery between components, ensuring efficient and stable operation.
Electrical Performance Rated Current: Each core can carry a rated current of 2A, providing sufficient power for most industrial devices to operate stably without the risk of over - current failure. Rated Voltage: With an AC rated voltage of 100V and a DC rated voltage of 140V, it can adapt to different industrial power sources, ensuring safe and stable power supply. Low Contact Resistance: The contact resistance is extremely low, with a maximum of 10m. This effectively reduces signal transmission loss, ensuring signal integrity and accuracy, which is crucial for applications with high - signal - quality requirements. High Insulation Resistance: The insulation resistance is as high as 1000M or more, providing excellent insulation performance, preventing leakage, and ensuring the safety of equipment and personnel, especially in industrial environments with strict electrical safety requirements.
Mechanical Performance Optimal Insertion and Extraction Force: The carefully designed insertion and extraction force not only ensures a secure connection but also does not pose excessive operational burden on users. Even after multiple insertions and extractions, the force remains stable, ensuring reliable connection at all times. Long Mechanical Life: As mentioned before, it can withstand over 1000 mating cycles, demonstrating excellent mechanical durability. This makes it suitable for scenarios where frequent plug - and - unplug operations are required, minimizing equipment downtime due to connector damage.
Environmental Performance Wide Temperature Range: The HR10A series can operate normally in a wide temperature range from - 25 to 85. Whether in the cold industrial workshops in the north or the hot factories in the south, or even in some special industrial scenarios with harsh temperature requirements, it can maintain stable performance without being affected by temperature changes. Certain Protection Level: Some models offer protection against dust and water splashing. In dusty and humid industrial environments, they can keep the internal electrical connections safe and reliable, avoiding malfunctions such as short - circuits caused by dust and water intrusion.
Model Examples HR10A - 7P - 6S: This 6 - core plug is commonly used for power and signal transmission in industrial cameras. The soldering - type connection ensures stable and reliable connection. Its compact design makes it ideal for internal wiring in space - limited devices, enabling efficient data and power transmission in tight spaces. HR10A - 10J - 10P: A 10 - core socket, often used to connect various sensors and controllers. It has excellent electrical and mechanical properties, stably transmitting sensor - collected data signals and accurately delivering controller commands to the actuators, playing a key role in automated control systems. HR10A - 13P - 20PC: A 20 - core plug suitable for complex equipme
