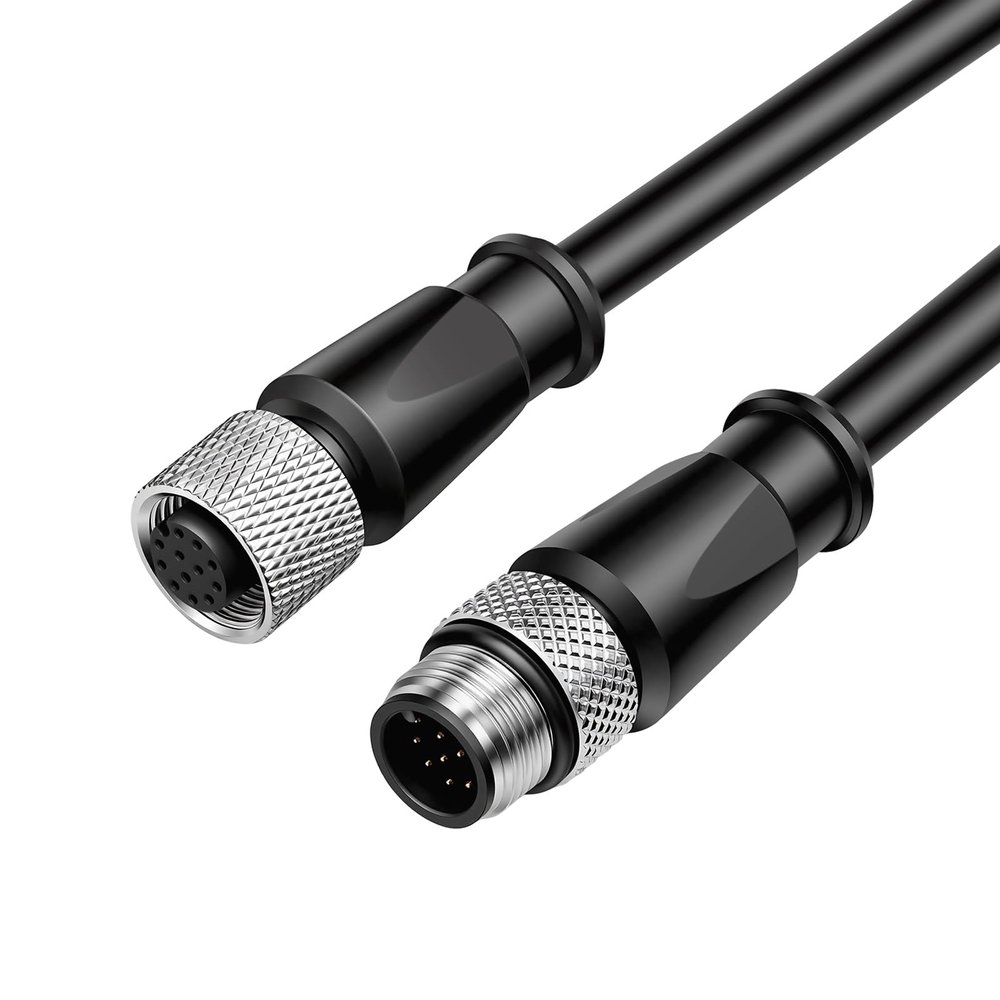

ZBLZGP M12 ACode 12Pin Male to Female Extension Cable, Shielded High Flexible IP67 Waterproof 5M(16.4FT), RS232 I/O Signal Cable for Cognex Vision and DJI Livox LiDAR Systems

Description

• Works with Cognex & Other Vision SystemsReplacement for Cognex CKR-200-CBL-EXT. Compatible with In-Sight 2000/7000/8000/9000, DataMan 260-580, and Checker 200/3G/4G series. Also compatible with Keyence, Basler, Omron, and other major industrial vision systems. Supports 24V DC power, general-purpose I/O, acquisition trigger, and RS-232 signal transmission
• Signal with Double-Layer ShieldingBraided aluminum foil + copper double-layer shielding blocks EMI/RFI interference in high-noise industrial environments. Built-in 24AWG conductors, gold-plated contacts, and nickel-plated brass housing deliver stable, low-resistance connections. Thread-locking design provides anti-vibration performance and strain relief to prevent accidental disconnection.
• IP67 Waterproof & Harsh Environment ReadyIP67 rated for protection against water and dust ingress. Durable PVC jacket resists oil, chemicals, abrasion, and UV exposure. Operating temperature: -25C to 80C. Designed for washdown zones, outdoor installations, and corrosive factory automation environments.
• Secure M12 A-Coded Connector DesignStandard M12 A-Coded 12-pin male to female connectors with thread-locking mechanism. Shock-resistant and anti-vibration structure provides stable connection for fieldbus, industrial Ethernet, and RS-232 applications. Quick plug-and-unplug design supports on-site installation and maintenance.
• Multiple Lengths for Any Wiring NeedStandard lengths: 1m, 2m, 3m, 5m, 8m, 10m, 15m, 20m, 25m, 30m, 40m, 50m (3.3ft to 164ft). Custom lengths available upon request. Designed for machine vision, industrial sensors, actuators, fieldbus control, and automated manufacturing equipment.

M12 Series Cables Robust Interconnect Solutions for Demanding Environments
Engineered for industrial automation, our M12 series cables deliver reliable performance in harsh conditions. These circular connectors feature threaded couplings that maintain secure connections even in high-vibration environments, making them ideal for factory automation, process control, and heavy machinery applications.
Key Features:
Industrial durability Zinc alloy connectors with IP67/IP68 ratings withstand dust, moisture, and chemicals
Comprehensive pin options Available in 2-pin to 17-pin configurations for diverse applications
Premium shielding Foil + braid shielding (S-coded) ensures EMI/RFI protection
Flexible cabling PUR or PVC jackets available with 7x0.25mm stranded conductors
Secure connections 360 shielding contact and screw-locking mechanism
Product Series Details:
Our M12 cable range includes:
Straight and right-angle connector options
Male-to-male, male-to-female, and female-to-female configurations
Field-attachable and molded cable versions
X-coded (10G Ethernet), D-coded (100M Ethernet), and A-coded (sensors) variants
Standard lengths from 0.5m to 20m
Specifications:
Voltage rating: 30V AC/DC (signal), 250V AC/DC (power)
Current rating: 4A (signal), 12A (power)
Temperature range: -40C to +85C (PUR), -25C to +70C (PVC)
Contact resistance: 10m
Insulation resistance: 100M
Mating cycles: 100 cycles
Cable diameter: 4.5mm to 8.2mm (varies by configuration)
