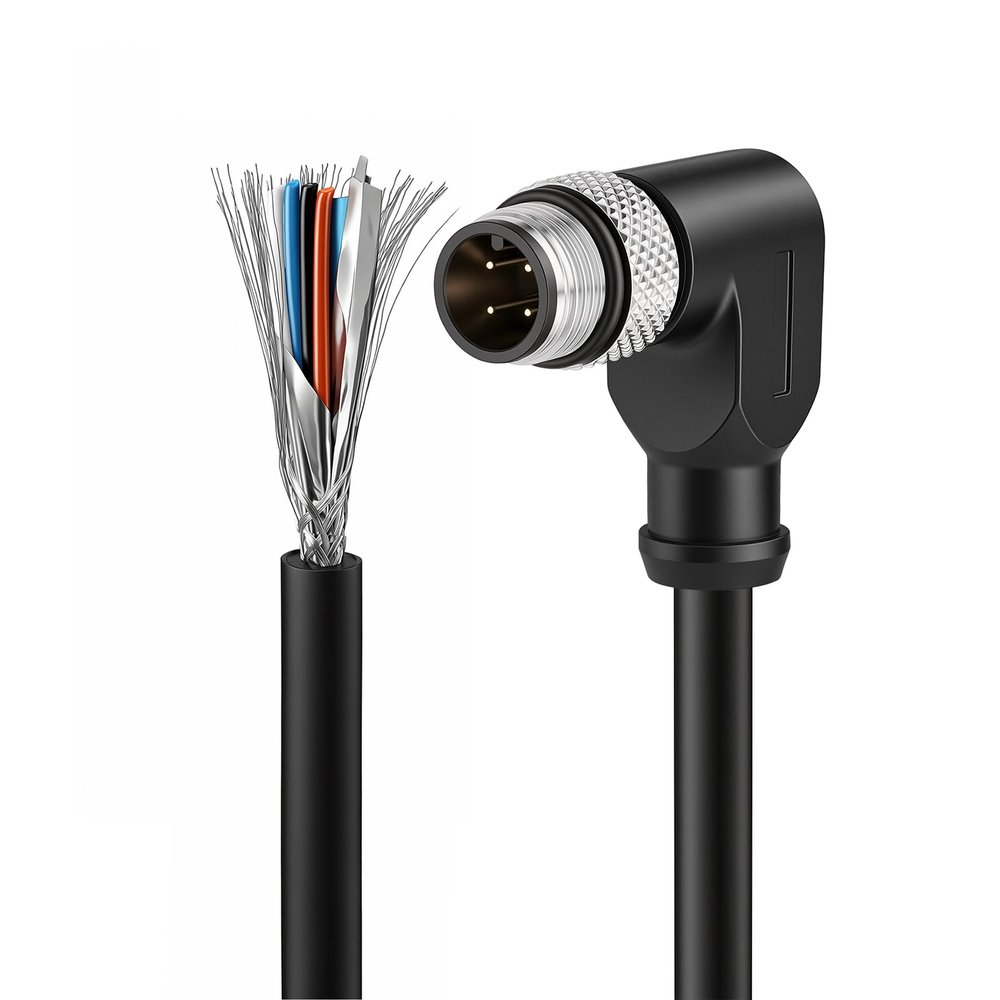

ZBLZGP M12 A-Code 4Pin Male to Bare Wire Shielded Cable, 22AWG 4 Core PVC Abrasion Resistant Cord for Food Industry Washdown Applications 40M

Description

• Industrial Grade Right Angle DesignUsing 90 degree right angle M12 A-code 4-pin male connector with 18AWG tinned copper bare wire end saves 40% space compared to straight design.PUR jacket provides IP67 water and oil resistant protection and adapts to -25C to +80C working temperature, especially suitable for industrial scenarios with space constraints such as robotic arms and CNC equipment.
• Anti-interference designShielded twisted pair structure, 600V rated voltage, impedance <0.5, effectively prevent EMI interference and ensure stable signal transmission. Suitable for Siemens S7-1200/S7-1500, AB CompactLogix 5370, Omron NX/NJ501 and other mainstream PLC systems.
• Connector & LengthConnector A: M12 Right Angle 4 Pin Male Connector; Connector B: Opening endedCable Length: 40M/131.2FT.(We also have other lengths,if you need it,please contact us.)
• Quick Installation 8mm pre-stripped wire ends with color coding (Pin1=brown) for quick wiring without tools. Integrated stress relief structure, can withstand more than 2000 bending under 50N tension, suitable for robotic arm and drag chain applications that require frequent movement.
• Wide range of applicationssuitable for a variety of industrial categories, communication digital and other products, industrial cameras, aviation carriers, railroad transportation, industrialized equipment, communication equipment, automation equipment, etc.

M12 Series Cables Robust Interconnect Solutions for Demanding Environments
Engineered for industrial automation, our M12 series cables deliver reliable performance in harsh conditions. These circular connectors feature threaded couplings that maintain secure connections even in high-vibration environments, making them ideal for factory automation, process control, and heavy machinery applications.
Key Features:
Industrial durability Zinc alloy connectors with IP67/IP68 ratings withstand dust, moisture, and chemicals
Comprehensive pin options Available in 2-pin to 17-pin configurations for diverse applications
Premium shielding Foil + braid shielding (S-coded) ensures EMI/RFI protection
Flexible cabling PUR or PVC jackets available with 7x0.25mm stranded conductors
Secure connections 360 shielding contact and screw-locking mechanism
Product Series Details:
Our M12 cable range includes:
Straight and right-angle connector options
Male-to-male, male-to-female, and female-to-female configurations
Field-attachable and molded cable versions
X-coded (10G Ethernet), D-coded (100M Ethernet), and A-coded (sensors) variants
Standard lengths from 0.5m to 20m
Specifications:
Voltage rating: 30V AC/DC (signal), 250V AC/DC (power)
Current rating: 4A (signal), 12A (power)
Temperature range: -40C to +85C (PUR), -25C to +70C (PVC)
Contact resistance: 10m
Insulation resistance: 100M
Mating cycles: 100 cycles
Cable diameter: 4.5mm to 8.2mm (varies by configuration)
