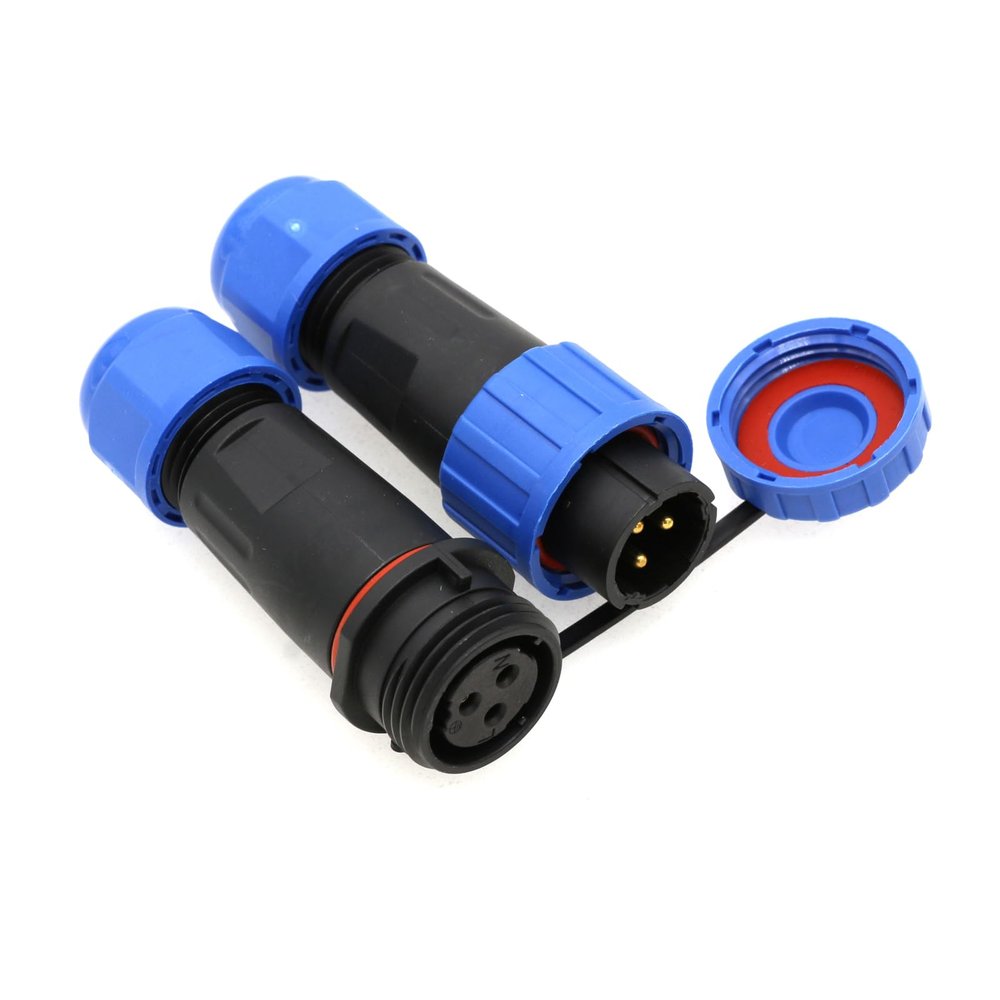

ZBLZGP TY16 Docking 3 Pin Connector IP68 Outdoor 10A Male Female Power Plug Circular Waterproof Connector No Soldering

Description

• TY16 3 Pin Aviation Waterproof Solder-Free Connector Male Female Cable Plug Socket Screw-Crimp Docking Connector.Cable outer diameter: for 5~7.5mm cable O.D.
• Rated Current / Voltage : AC 380V/10A;Withstand Voltage: 1500V (AC); Contact Resistance: 2M; Wire: 1.5mm;Insulation resistance: 2000M;Contact Diameter Number: 1.8mm x 3.
• Insulator:Thermoplastic PA66 High Temperature Resistant 200;Insert Mode:Thread Connection;Contact Material:Brass with gold plating;Temperature Range:-25-85;Plugging Time:>500
• Solid Copperlmitation Gold-Plated Copper Needle,Anti-Corrosion,Anti-Oxidation,Strong Electrical Conductivity.
• Feature:Screw Connection,more convenient,repeated use improved efficiency.Flame Retardant,high temperature resistant.lmitation Gold-Plated Copper Needle

TY16 Connector - Reliable Connection, Excellent Performance
Product Features Outstanding Waterproof Performance: With an IP68 protection rating, it can completely prevent dust ingress and operate normally for a long time under certain water pressure. It is fearless of harsh and humid environments, ensuring stable operation for outdoor equipment or in humid areas of industrial production. Sturdy Screw Connection: The screw connection design makes installation simple and the connection firm. It effectively prevents cable loosening, ensuring the stability and reliability of the connection. It is suitable for equipment connections in environments that require frequent movement or vibration. Wide Operating Temperature Range: The operating temperature ranges from -20C to 110C, enabling it to adapt to various extreme temperature conditions. It maintains excellent performance, whether in cold outdoor environments or high-temperature industrial settings. High-quality Gold-plated Contacts: The contacts of the connector are gold-plated, featuring extremely low contact resistance. This reduces signal transmission loss, ensures efficient and stable signal and power transmission, and enhances the overall performance of the equipment.
Product Series Details
The TY16 connector offers a variety of pin counts, including 2-pin, 3-pin, and 4-pin specifications. Different pin counts are suitable for various application scenarios, meeting diverse equipment connection needs. Whether it is simple signal transmission or complex simultaneous transmission of multi-line power and signals, the TY16 series can provide appropriate solutions.
Product Specifications 2-pin model: Maximum current 16A, maximum voltage 380V, contact resistance 1m, maximum cable cross-sectional area 4mm, suitable cable diameter 4.5-7.5mm, made of polyamide. 3-pin model: Maximum current 10A, maximum voltage 380V, contact resistance 2m, maximum cable cross-sectional area 1.5mm, suitable cable diameter 4.5-7.5mm, made of polyamide. 4-pin model: Maximum current 5A, maximum voltage 250V, contact resistance 5m, maximum cable cross-sectional area 0.75mm, suitable cable diameter 4.5-7.5mm, made of polyamide.
Choose the TY16 connector to provide safe, stable, and efficient protection for your equipment connections. It is the ideal connection solution for multiple fields such as industry, communication, and energy.
