Description
- M.2 PCI-E Adapter --- The PCI-E expansion enables to connect a PCIe M.2 SSD (NVMe only) to your computer through PCI Express for ultra-fast data access
- NVMe Specification --- It supports M.2 solid-state hard drives for M Key only, please confirm the NVMe specification identification before purchase
- PCI-E 3.0 --- Supports PCIe 1.0 ,PCIe 2.0 and PCIe 3.0 motherboard
- Great Performance --- Configuration of metal baffle to fix the adapter firmly. Hot-swapping feature allows you to connect/disconnect
- System Support --- The PCIe adapter is compatible with all systems, LINUX
Features:
The adapter card uses differential line alignment to support PCI-E 3.0 1X signal. Supports M.2 solid-state hard drives for M Key only, please confirm the NVMe specification identification. PCI-E3.0 design, downward compatible 2.0, high-speed transmission. Configuration of metal baffle to fix the adapter firmly. Hot-swapping feature allows you to connect/disconnect.
Specification:
Material: PCB
Color: Black
Name: M.2 to PCI-E3.0 X4 expansion card
Model: PCENGFF-N01
Transmission Speed: 10000MB/s
Interface: PCI-E 1X PCI-E 4X
Size: approx. 12 x 10.5 x 1.8cm/4.7 x 4.1 x 0.7in
Package Weight: Approx. 69g / 2.4oz
Support System: compatible with all WINDOWS systems, LINUX
Package list:
1 x M.2 to PCI-E3.0 X4 Expansion Card
1 x Screw Pack
Note:

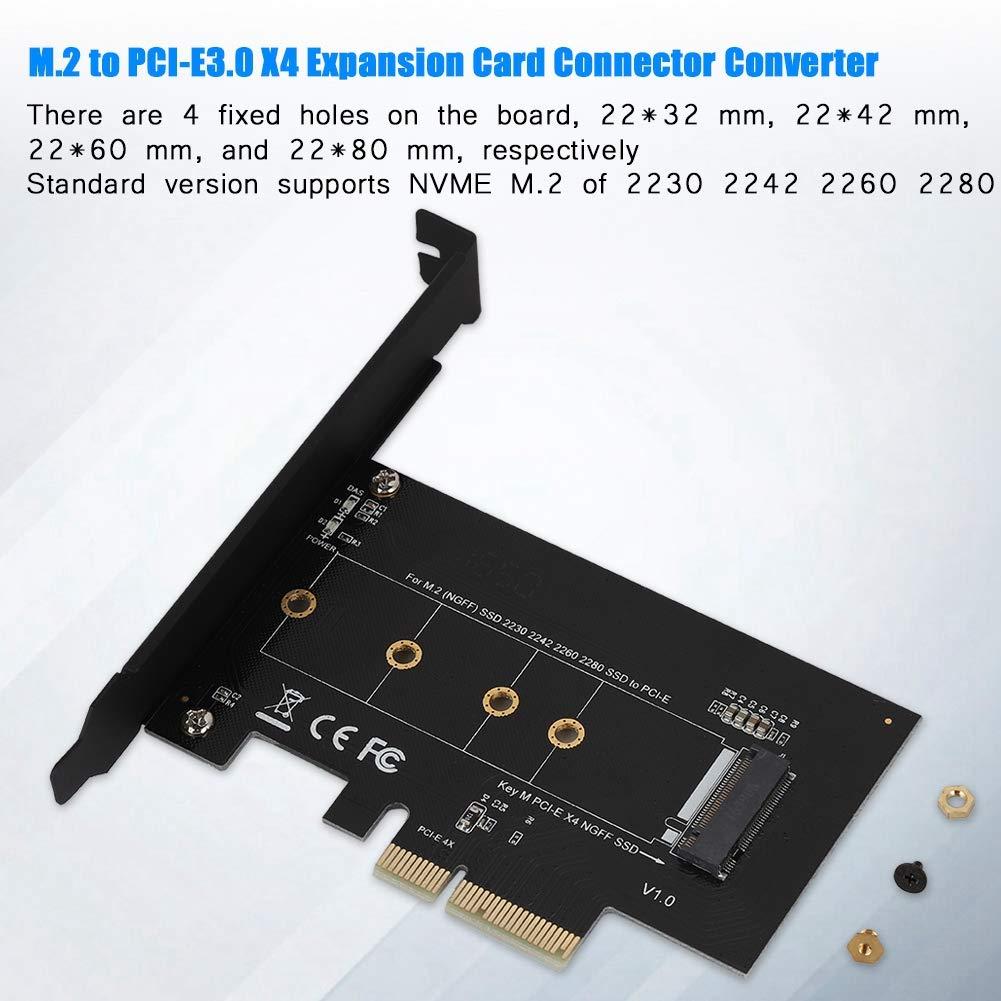

1. M.2 NGFF to PCI-E X4 adapter card. Using this adapter card, the ordinary PCI-E X4 interface can be transferred to M.2 NGFF interface. There are four fixed holes on the board, 22x32 mm, 22x42 mm, 22x60 mm and 22x80 mm, respectively.
2. Support for Samsung PM961, 960EVO, SM961, PM951, sm951, INTEL 600P, building T10 and other NVME protocols M.2. M.2 of SATA protocol is not supported.
3. Standard version supports NVME M.2 of 2230 2242 2260 2280
