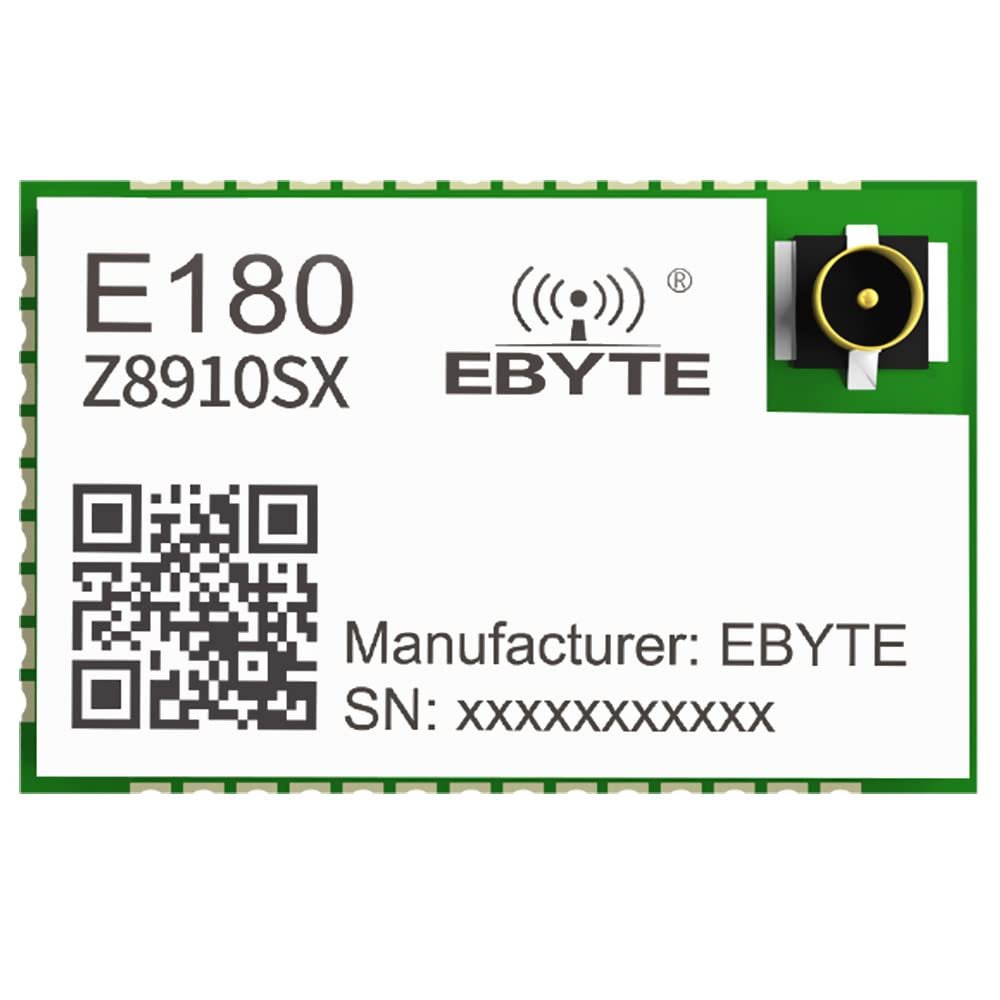

Zigbee 3.0 Communication JN5189 Touch Link Network 11dBm IPEX Interface E180-Z8910SX for Smart Home Smart Lamp

Description

• E180-Z8910SX is a ZIGBEE3.0 module designed and produced by Chengdu Ebyte based on NXP JN5189 wireless SOC. It has a small size, low power consumption, high reliability, and works in the 2.4GHz frequency band. It has an ARM architecture, M4 core, and a clock frequency of up to 48MHZ. The high-performance MCU, the maximum transmit power can reach 11dBm, and the lowest period sleep current can reach 1120nA.
• E180-Z8910SX integrates all node functions such as coordinator, router, terminal, and sleep terminal. The coordinator/router can directly connect to 150 terminal sub-nodes
• JN5189 is a wireless microcontroller with great potential to become the first choice for future smart home, IoT transformation, and industrial automation. Its network characteristics comply with the ZIGBEE 3.0 standard and provide a complete application integration solution based on the IEEE802.15.4 standard ISM frequency band.
• The product has been tested and certified by a series of authoritative radio frequency instruments, combined with years of market experience and the actual needs of users in the industry, integrates the extremely complex communication protocol of wireless products into the built-in SoC, supports serial transparent transmission mode, and integrates quickly and easily
• The self-organizing network function used provides multi-channel configurable ADC, IO, and PWM interfaces, which can simplify the complex and greatly simplify the complex development process of wireless products so that your products can be quickly put into the market at a lower cost.

Feature
Centralized network management: ZIGBEE 3.0 security standard centralized network access mechanism, data
security and reliability;
Role switching: The user can switch the device arbitrarily among nodes such as coordinator, router, terminal and
dormant terminal through serial port commands;
Support multiple network topologies: point-to-point, star network, MESH network;
Support fast broadcast: the minimum broadcast period can reach 500ms;
Network self-healing: If the intermediate node of the network is lost, other networks will automatically join or
maintain the original network;
Data security: Integrate ZIGBEE 3.0 security communication standard, and the network contains multi-level
security keys;
Serial port configuration: The module has built-in serial port commands, and users can configure (view) the
parameters and functions of the module through the serial port commands.
Change of network PAN_ID: Any switch of network PAN_ID, users can customize PAN_ID to join the
corresponding network or automatically select PAN_ID to join the network;
GPIO control: local/remote GPIO level control, 3 IOs can be selected;
PWM control: local/remote PWM control, 4 PWM channels for users to choose;
ADC control: local/remote ADC reading, 3 ADC channels for users to choose (including power supply voltage
detection);
Module reset: the user can reset the module through the serial port command.
Restore factory settings: the user can restore the factory settings of the module through the serial port command
Over-the-air configuration: the user can use the over-the-air configuration command to remotely configure other
devices in the network
